Shenzhen HengDrive Technologies Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm brushless dc geared tsav nyob rau hauv Suav teb. Nrog kev paub ntau, peb zoo siab tos txais koj rau cov lag luam wholesale bulk brushless dc geared lub cev muaj zog ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

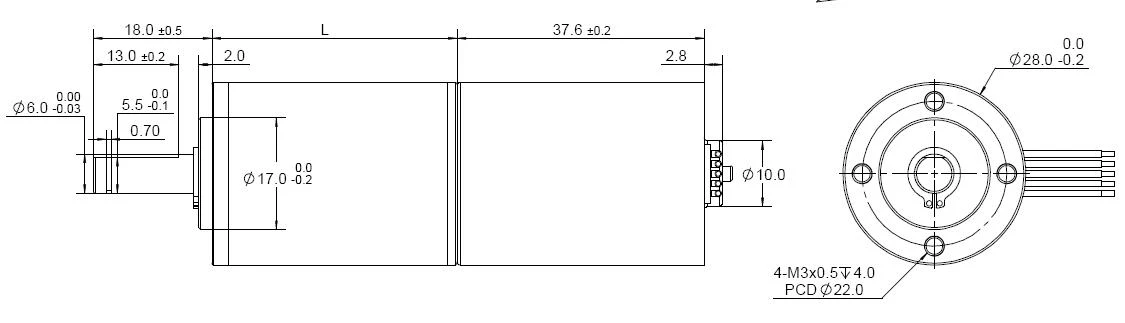

Daim duab kos duab: Chav tsev: millimeter

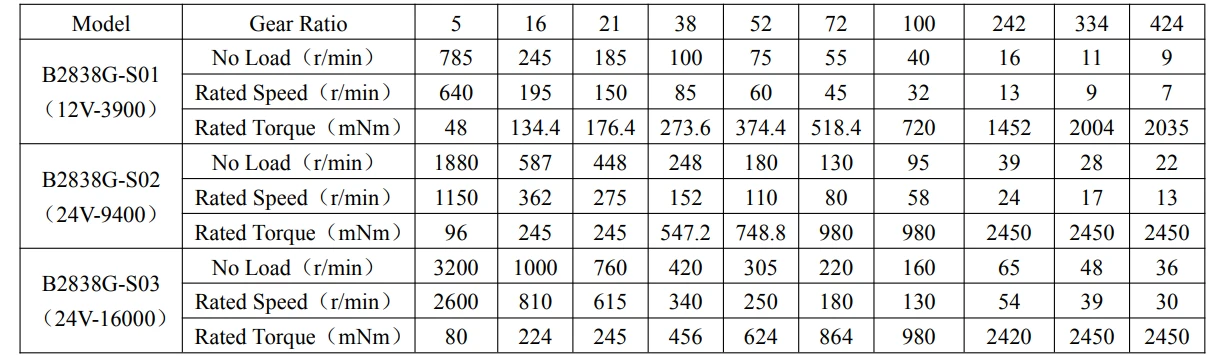

Torque & Speed List

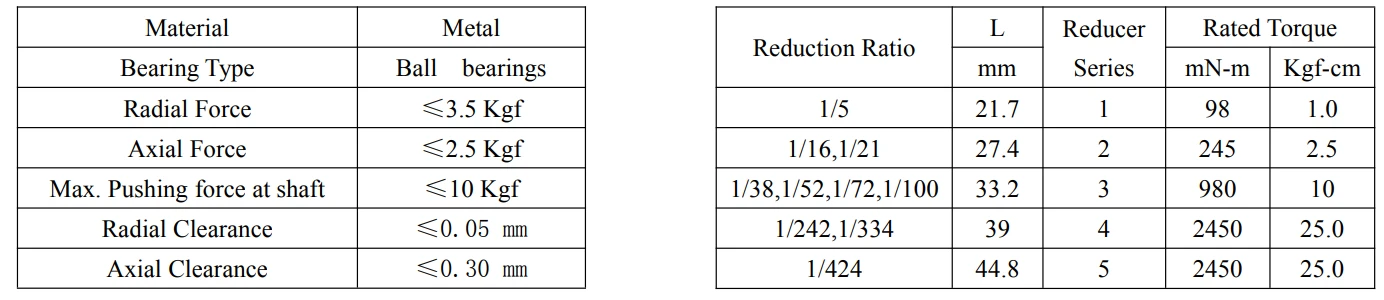

Gearbox yam ntxwv
Daim ntawv ceeb toom:Cov ntaub ntawv hauv daim ntawv qhia tshwj xeeb no yog rau lwm tus neeg siv khoom. Voltage, ntsuas torque, ceev, tam sim no, lub zog thiab ncej txuas ntxiv feature & qhov ntev tuaj yeem hloov tau raws li cov neeg siv khoom tshwj xeeb.

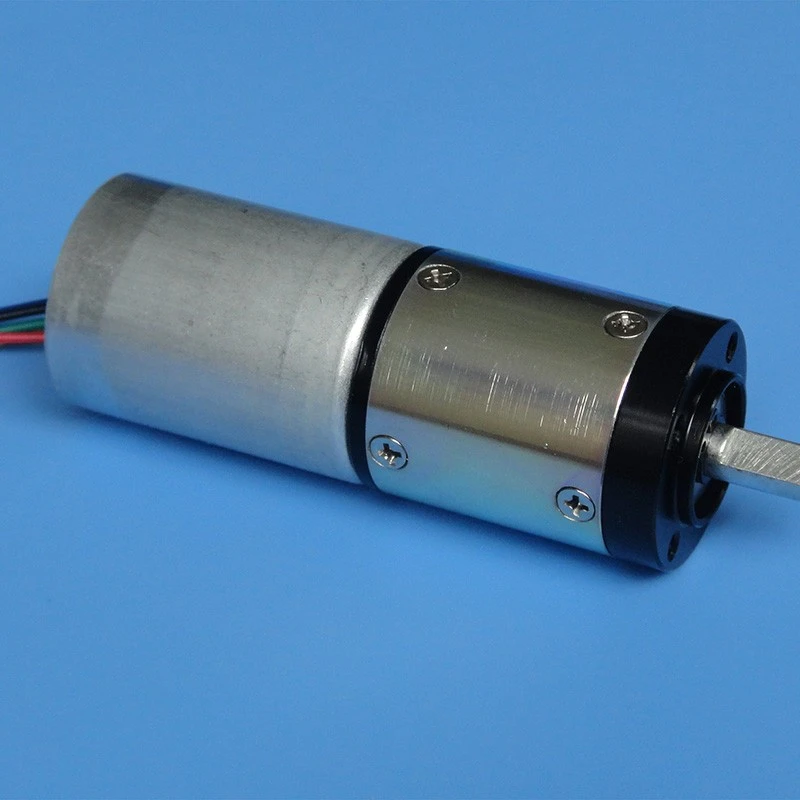

Brushless DC Geared Tsav
Peb Brushless Brushless DC Geared Tsav integrates advanced BLDC lub cev muaj zog tshuab nrog ib tug precision -engineered planetary los yog parallel ncej gearbox. Tsim los rau cov ntawv thov uas xav tau lub zog siab ceev, tswj ceev ceev, thiab kev saib xyuas ntev ntev -kev ua haujlwm pub dawb, lub tshuab no yog qhov zoo tshaj plaws hloov kho los ntawm cov tsoos brushed DC thiab AC induction motors. Cov ntawv thov muaj xws li cov tsheb coj mus siv tau (AGVs), cov khoom siv kho mob, cov khoom siv thauj khoom, cov caj npab neeg hlau, cov tshuab ntim khoom, thiab lub hnub ci nrhiav cov tshuab.
Brushless DC Geared Tsav Cov Ntsiab Lus Tshwj Xeeb
- Rated zog: 50W - 3kW
- Voltage Options: 24V / 48V / 72V DC
- Kev nrawm nrawm: 500 - 3000 rpm (lub cev muaj zog), tso zis nrawm ntawm iav piv 3: 1 txog 100: 1
- Hom Gearbox: Planetary (siab dua torque) lossis Spur iav (tus nqi- zoo)
- Cov lus xaiv xaiv: Hall sensors, encoder (optical / magnetic), los yog daws
- Kev tiv thaiv chav kawm: IP54 - IP65 (Customizable)
- Kev ua tau zoo: Txog li 88% rau lub cev muaj zog + 95% ib theem iav
Vim Li Cas Xaiv Peb BLDC Geared Tsav - Chaw Tsim Khoom Zoo
Core Technology Leadership
Peb nyob hauv- pab pawg R&D hauv tsev muaj ntau tshaj 15 xyoo ntawm kev paub hauv electromagnetic tsim. Peb siv finite element tsom xam (FEA) kom optimize stator thiab rotor qauv, txo cogging torque los ntawm 30% piv rau kev lag luam nruab nrab. Qhov no ua rau ultra- du qis- ua haujlwm nrawm thiab suab nrov tsawg tsawg.
Integrated Gearbox Precision
Tsis zoo li cov khoom sib dhos modular, peb cov qauv tsim ua kom muaj kev sib haum xeeb zoo thiab cov roj khaws cia. Gearwheels yog tsim los ntawm 20CrMnTi alloy steel, carburized thiab hauv av rau DIN 5 los yog zoo dua qhov tseeb. Qhov no yields lub iav lub neej ntawm ntau tshaj 10,000 teev ntawm rated load.
Ntse Controller Compatibility
Brushless DC Geared Tsav Txhua lub cev muaj zog tuaj yeem ua ke nrog peb cov neeg tsav tsheb ntse trapezoidal lossis FOC (Field Oriented Control) tsav tsheb. Cov nta muaj xws li: kaw- txoj cai voj ceev (± 0.5%), programmable tam sim no txwv, regenerative braking, thiab CANopen / RS485 / Modbus kev sib txuas lus.
Kev sim nruj
100% ntawm motors undergo:
- Dynamic ntsuas ntawm rotor
- Tsis muaj -load thiab puv -load hlawv- nyob rau hauv 2 teev
- Rwb thaiv tsev tsis kam (500V DC) thiab dielectric zog kuaj
- Kev vibration & ntsuas kub nce
Cov ntawv pov thawj
- Peb BLDC geared motors thiab chaw tsim khoom muaj ntawv pov thawj kom ua tau raws li cov qauv thoob ntiaj teb:
- CE (EMC & LVD Cov Lus Qhia) - Ua kom muaj kev nyab xeeb hluav taws xob tsim thiab electromagnetic compatibility rau European lag luam.
- RoHS 3.0 - Ua raws li kev txwv tsis pub muaj kev phom sij hauv cov cuab yeej siv khoom lag luam.
- ISO 9001: 2024 - Cov ntawv pov thawj kev tswj hwm zoo suav nrog kev tsim, tsim khoom, thiab tom qab- muag.
- UL 1004 (ntawm cov qauv xaiv) - Rau North American kev ua lag luam kev nyab xeeb yuav tsum.
- Kev Tiv Thaiv IP Txheeb Xyuas - Thib peb- tog tau sim ib qho IEC 60529.
- REACH - Kev Sau Npe, Kev Ntsuam Xyuas, Kev Tso Cai ntawm Tshuaj - tag nrho ua raws.
Cov ntaub ntawv ua tau zoo (48V, 400W, 10: 1 piv)
|
Rated Torque |
12 Nm (ntev) |
|
Tsis muaj -load Tam sim no |
1.2A |
|
Rated Tam sim no |
9.5A |
|
Max Efficiency |
86% @ 1200 rpm tso zis |
|
Rwb thaiv tsev Class |
F (155 degree) |
|
Ambient Kub |
-20℃rau +60 degree |
Ordering & Customization
Peb muab MOQ qis (50 units) thiab lub sijhawm ua haujlwm ceev (15-25 hnub rau kev cai shafts, connectors, lossis xaiv nres). Dawb - cov npe khoom lag luam thiab cov khoom tsis zoo (12V, 96V) muaj nyob rau ntawm kev thov.
Rau cov engineers nrhiav kev ruaj khov, lub zog -txuag, thiab tswj cov lus tsa suab meej, peb CE / RoHS / UL- ntawv pov thawj Brushless DC Geared Motor muab kev ntseeg siab tsis sib xws. Hu rau peb pab neeg muag khoom rau 3D kos duab, torque- nrawm nkhaus, lossis kev sim ua qauv.
Cim npe nrov: Tuam Tshoj brushless dc geared lub cev muaj zog, Tuam Tshoj brushless dc geared tsav manufacturers, lwm tus neeg, Hoobkas
