Shenzhen HengDrive yees Co., Ltd. Nrog kev paub ntau, peb sov siab txais tos koj rau cov lag luam wholesale bulk pas dej ua ke neeg hlau tsav ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

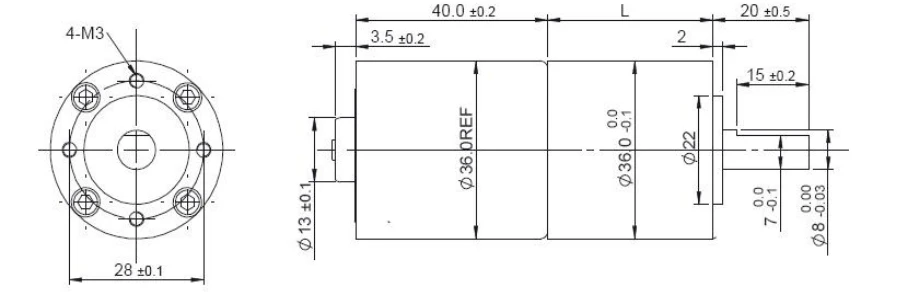

Daim duab kos duab:Chav tsev: millimeter

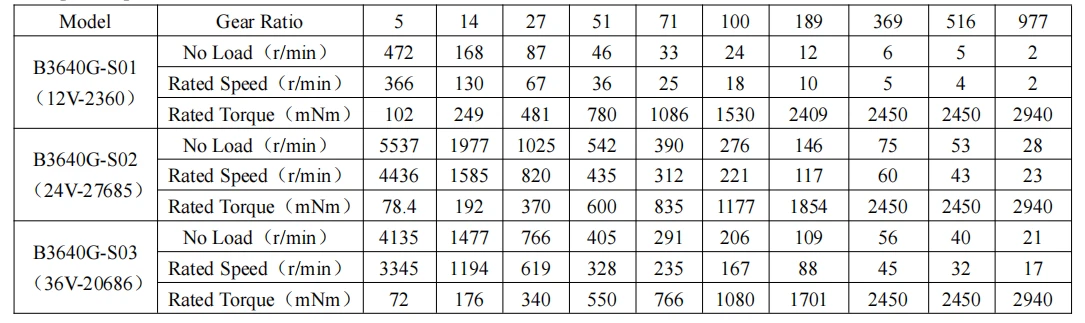

Torque & Speed List

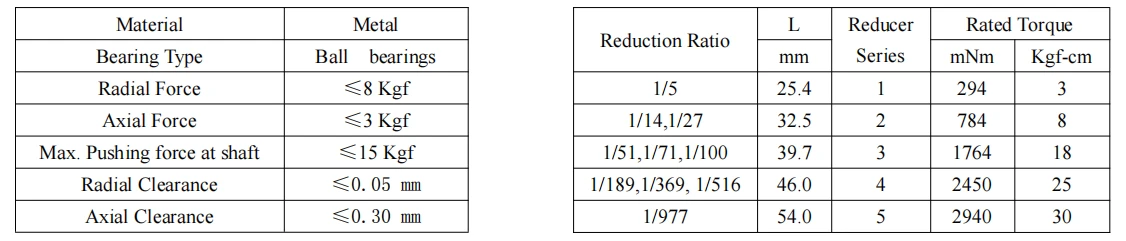

Gearbox yam ntxwv

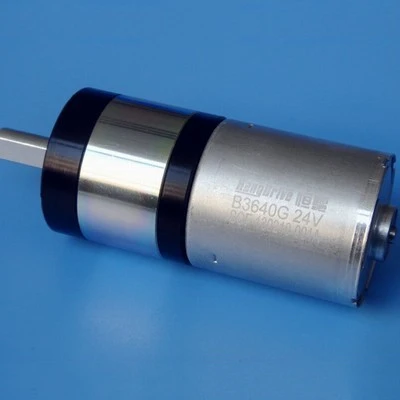

Product Overview
Peb lub pas dej Robot Tsav yog tsim tshwj xeeb rau cov pas dej da dej tu neeg hlau, lub zog tsav tsheb / lub log thiab cov twj tso kua mis. Ua haujlwm ntawm 12V-24V (tsis tshua muaj hluav taws xob rau kev nyab xeeb hauv qab dej), nws muab 2-8 Nm torque nrog kev ua haujlwm siab (Ntau dua lossis sib npaug rau 82%). Integrated Hall sensors ua kom muaj kev taw qhia meej, phab ntsa- nce toj, thiab tswj dej pom.
Manufacturing Advantages
Peb tsim nyob rau hauv ib qho ISO 9001 thiab IATF 16949-certified chaw nrog tag nrho automated winding, encapsulation, thiab xau kuaj:
Waterproof tag nrho:
Ua kom tiav resin potting thiab triple - kaw stainless hlau ncej ua tiav IP68 ntsuas rau kev ua haujlwm hauv qab dej tsis tu ncua (txog li 5m qhov tob).
Corrosion kuj:
Txhua qhov chaw raug siv marine -qib 316 stainless hlau, anodized aluminium, los yog engineered polymers rau chlorine / dej ntsev durability.
High torque ceev:
Neodymium hlau nplaum thiab optimized winding muab muaj zog nce torque hauv compact loj (mus txog 52mm txoj kab uas hla).
Ntev lifespan:
3,000+ teev ua haujlwm nrog tus kheej- lubricating ceramic bearings thiab 150℃- ntsuas rwb thaiv tsev.
Kev cai xaiv:
Muaj nrog PWM ceev tswj, encoder tawm tswv yim, los yog kev tswj hwm (BLDC + kaw PCB).
Muaj peev xwm ntau lawm:
150,000 units / hli nrog 5-7 lub lis piam ua haujlwm rau kev cai shafts lossis mounting flanges.
Daim ntawv pov thawj & Ua raws cai
- ISO 9001: 2015 (Kev tswj hwm zoo)
- IATF 16949: 2016 (tus txheej txheem tswj)
- ISO 14001: 2015 (ib puag ncig)
- RoHS, REACH, CE, UKCA
- IP68 (tus thib peb- tau lees paub, 5m / 24h)
- EMC ua raws li EN 55014-1
- UL 1004 (yeem rau North America)
Xaiv peb lub pas dej Robot lub cev muaj zog rau cov neeg hlau pas dej ua ke uas xav tau kev ntseeg siab tsis muaj dej, nce lub zog, thiab muaj ntawv pov thawj kev nyab xeeb. Tiv tauj peb rau cov qauv los yog cov ntaub ntawv technical.
Cim npe nrov: Pool Robot Tsav, Tuam Tshoj Pool Robot Tsav manufacturers, lwm tus neeg, Hoobkas
